Impermeable Sheet Geomembrane HDPE 1mm for Artificial Lake

High density polyethylene (HDPE) 1mm thick impermeable membrane is widely used in the construction of artificial lakes. This anti-seepage membrane has excellent chemical resistance, aging resistance, and puncture resistance, which can effectively curb water leakage and ensure the water quality safety and anti-seepage performance of artificial lakes. HDPE anti-seepage film is manufactured using advanced extrusion technology, with a flat and smooth surface, and good UV resistance and weather resistance. During installation, only simple leveling treatment is needed for the base layer, which can easily lay the anti-seepage film, greatly reducing the difficulty of construction. This HDPE anti-seepage film is widely favored by engineering builders and is an ideal choice for artificial lake anti-seepage projects.

  Contact Now E-Mail Telephone WhatsApp
Product Details

A 1mm thick high-density polyethylene (HDPE) anti-seepage film specifically designed for artificial lakes is an ideal choice. This anti-seepage membrane has good impermeability, chemical resistance, and aging resistance, which can effectively prevent the infiltration of groundwater and surface water, ensuring the water quality safety of artificial lakes. Its high-quality physical and mechanical properties, such as high tensile strength, good ductility, and puncture resistance, can ensure that there will be no damage or leakage during installation and use. In addition, the high and low temperature resistance, UV resistance and other characteristics of HDPE anti-seepage film also make it suitable for various complex natural environmental conditions. Overall, this 1mm thick HDPE anti-seepage film is an ideal choice for the construction of artificial lakes, which is economically practical and has excellent performance.


Impermeable Sheet Geomembrane HDPE 1mm for Artificial Lake


Parameter


ltem

Detailed item

Unit

Standard

Test Frequency

GS075

GS010

GS015

GS020

GS030

Mechanical

Properties

Thickness

mm

D5199

per roll

0.75

1.00

1.50

2.00

3.00

Density

 g/cc

D1505/D792

90.000kg

0.94

Tensile Properties

Yield Strength

KN/m

D6693

Type Iv

9.000 kg

11

15

22

29

44

Break Strength

KN/m

20

27

40

53

80

Yield Elongation

%

12

12

12

12

12

Break Elongation

%

700

700

700

700

700

Tear Resistance

N

D1004

20.000kg

93

125

187

249

374

Puncture Resistance

N

D4883

20.000kg

240

320

480

640

960

Stress Crack Resistance

Hr.

D5397

per GRl GM-10

300 hr.

Carbon black content

%

D4218

9.000kg

2.0-3.0%

Carbon black dispersion


D5596

20.000kg

For 10 different views: 9 in Categories 1 or 2 and 1 in Category 3

Reference

Properties

Oxidative Induction Time

Standard OlT

min

D3895

90.000kg

100 min

High pressure OlT









D5885

90.000kg

400 min

Oven Aging at 85°C retained after 90 days



%

D5721

per each

formulation

55%

Standard OlT

D3895

80%

High pressure OlT

D5885

80%

UV Resistance

High Pressure OlT_% retained after 1600 hrs

%

D5885

per each

formulation

50%

Roll Size

Roll widthe

m



7

7

7

7

7

Roll Length

m



280

210

140

105

70

Size stability

%



2%


Advantages of Impermeable Sheet Geomembrane HDPE 1mm for Artificial Lake


Impermeable Sheet Geomembrane HDPE 1mm for Artificial LakeImpermeable Sheet Geomembrane HDPE 1mm for Artificial Lake


1. Excellent chemical resistance: HDPE material has excellent chemical stability, which can resist the corrosion of various chemical components in lake water, ensuring the long-term safety of the anti-seepage membrane.

2. Excellent anti-seepage performance: 1mm thick HDPE anti-seepage film can effectively block water leakage and ensure the water storage function of artificial lakes.

3. Excellent anti-aging property: HDPE material has excellent anti-aging property. Even if it is exposed to the sun and lake environment for a long time, it will not have the problem of aging.

4. High puncture resistance: HDPE anti-seepage film has good puncture resistance, which can effectively prevent sharp objects from piercing and enhance the safety of the lake bottom anti-seepage system.

5. Convenient and simple construction: When laying HDPE anti-seepage film, only simple leveling treatment is needed for the base layer, greatly reducing the difficulty of engineering construction.

6. Economical: HDPE anti-seepage membrane material has a low cost, which ensures excellent anti-seepage performance while also bringing good economic benefits to the project.

Overall, 1mm thick HDPE impermeable membrane is an ideal choice for the construction of artificial lakes, which can effectively curb water leakage, ensure the safety of lake water quality and anti-seepage performance.


Application of Impermeable Sheet Geomembrane HDPE 1mm for Artificial Lake


Impermeable Sheet Geomembrane HDPE 1mm for Artificial LakeImpermeable Sheet Geomembrane HDPE 1mm for Artificial Lake

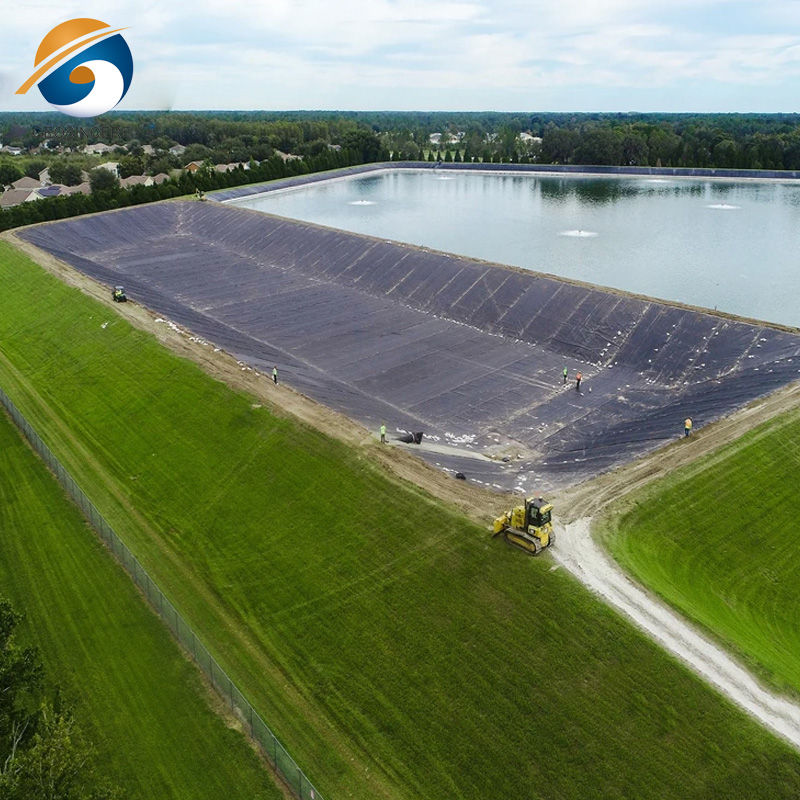

1. Bottom anti-seepage layer: HDPE anti-seepage film is laid at the bottom of an artificial lake, which can reliably block water leakage and prevent groundwater pollution.

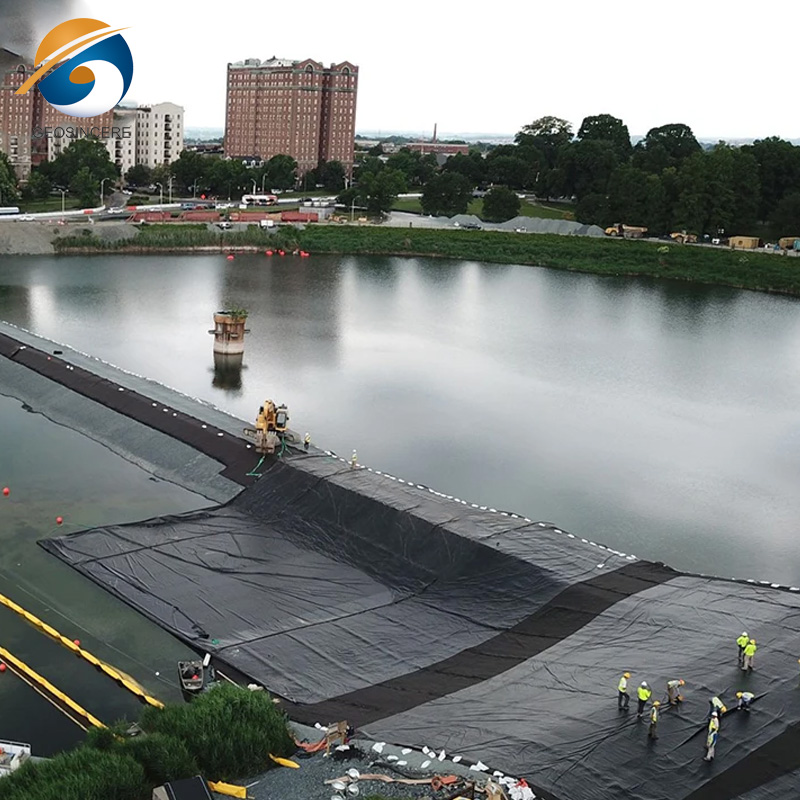

2. Slope protection: Covering the artificial lake slope with HDPE anti-seepage film can effectively prevent soil erosion and enhance the stability of the slope.

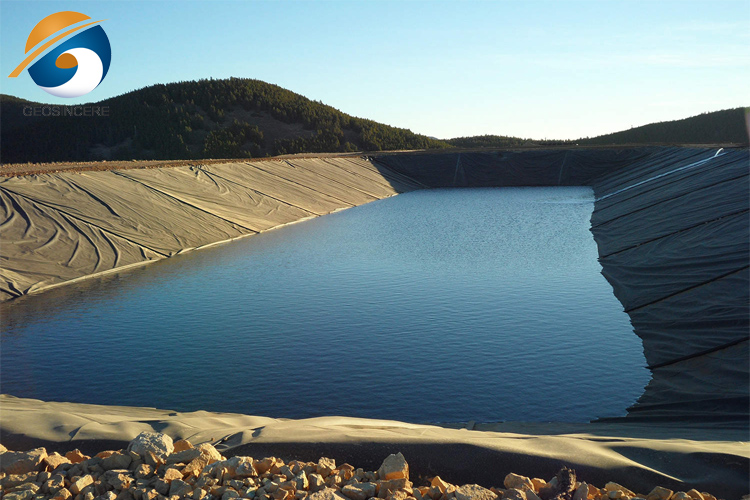

3. Reservoir anti-seepage: Laying HDPE anti-seepage film at the bottom and walls of the reservoir can effectively prevent water leakage and ensure the water storage function of the reservoir.

4. Artificial wetland anti-seepage: HDPE anti-seepage film is laid at the bottom and slopes of the artificial wetland, which can block the exchange of surface water and groundwater and maintain the ecological environment of the wetland.

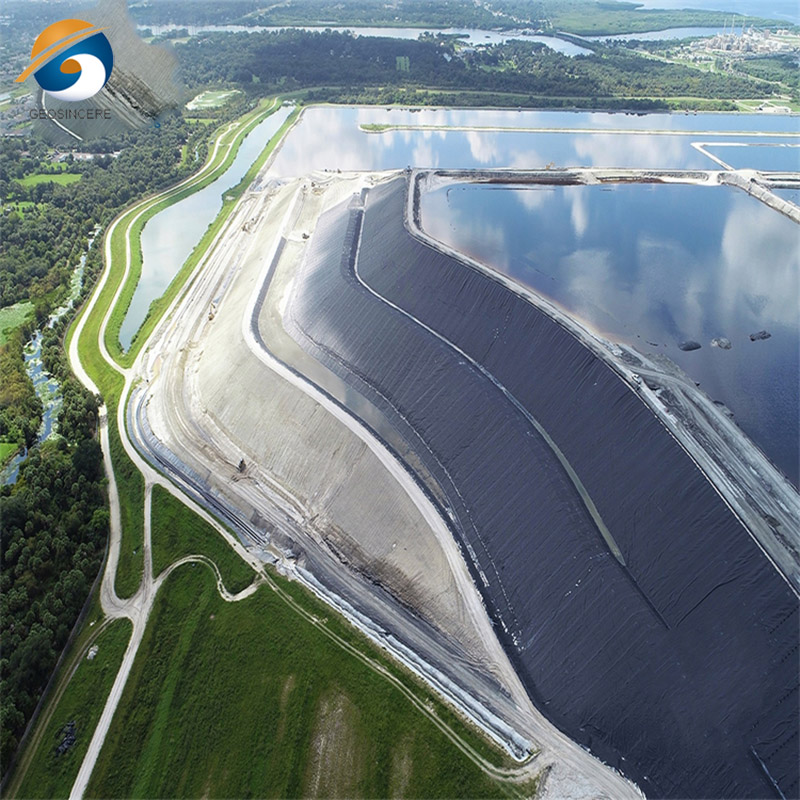

5. Landfill anti-seepage: Laying HDPE anti-seepage film underground in the landfill can block the infiltration of leachate into groundwater and prevent environmental pollution.

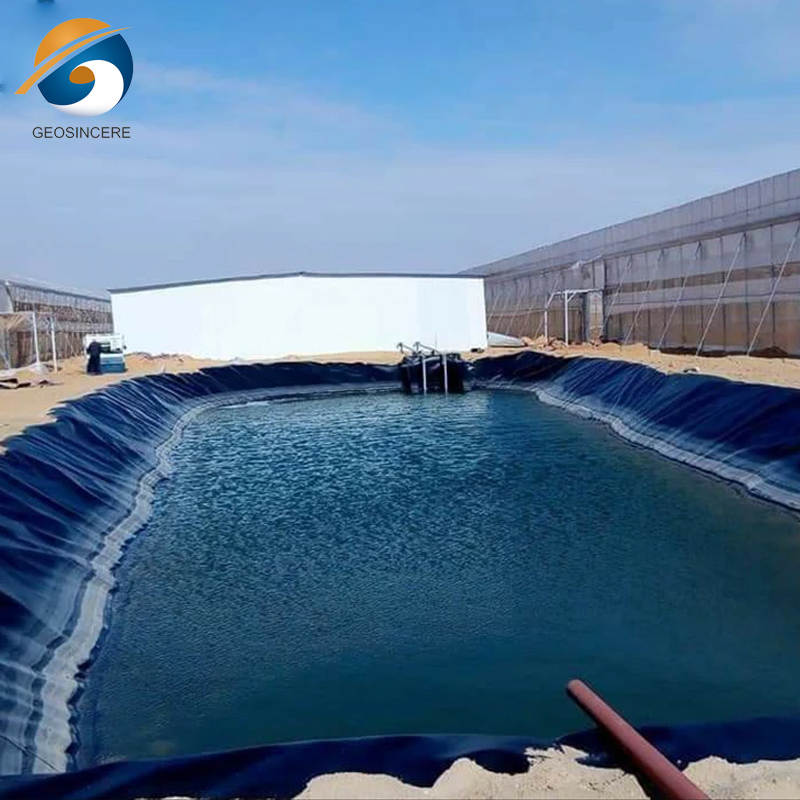

6. Fish pond anti-seepage: HDPE anti-seepage film is laid at the bottom and side walls of the fish pond, which can effectively prevent water leakage and ensure the water quality safety of fish farming.

Overall, 1mm thick HDPE impermeable membrane is widely used in various engineering fields such as artificial lakes, reservoirs, wetlands, and landfills, and is an ideal ground anti-seepage material. Its excellent anti-seepage performance and economy make it the preferred choice among these projects.


Product Packing


Selling Packing:Customer's company Logo mark can be designed and added.

Outer Packing:Packed in Double-layer woven bags to ensure smooth arrival and avoid rough handling.

Transport Packing: Put in the container.


Impermeable Sheet Geomembrane HDPE 1mm for Artificial Lake
