Geomembrane 2mm HDPE Landfill Impermeable Liner
The Geomembrane 2mm HDPE Landfill Impermeable Liner is a high-density polyethylene (HDPE) liner specifically designed for use in landfills. It is a durable and impermeable barrier that prevents the leakage of liquids or gases from the landfill site.The liner has a thickness of 2mm, providing excellent resistance against punctures, tears, and abrasion. It is engineered to withstand the harsh conditions and chemical exposure commonly found in landfill environments.
The Geomembrane 2mm HDPE Landfill Impermeable Liner finds applications in various areas. It serves as a primary barrier in landfills, preventing the migration of contaminants into the surrounding environment. It is also used in hazardous waste storage facilities, industrial waste ponds, and other containment structures. Additionally, the liner is suitable for lining ponds, lagoons, and tanks in water and wastewater treatment facilities.
The Geomembrane 2mm HDPE Landfill Impermeable Liner is a specialized liner designed for use in landfills. It is made of high-density polyethylene (HDPE) and has a thickness of 2mm. This liner serves as a durable and impermeable barrier, effectively preventing the leakage of liquids and gases from the landfill site.
With its 2mm thickness, the liner offers excellent resistance against punctures, tears, and abrasion, ensuring long-lasting performance in challenging landfill environments. It is specifically engineered to withstand the harsh conditions and chemical exposure commonly encountered in landfills.
The HDPE liner boasts several key features. Firstly, it provides impermeability, effectively preventing the penetration of liquids and gases, thus ensuring containment and environmental protection. Additionally, its durability and resistance to punctures, tears, and abrasion make it a reliable choice for landfill applications.
The liner is also designed to withstand exposure to a wide range of chemicals commonly found in landfill sites. It exhibits excellent resistance to ultraviolet (UV) radiation, ensuring its long-term stability and performance when exposed to sunlight. The liner can be easily welded using heat fusion techniques, allowing for a seamless and secure installation.
Furthermore, the flexibility of the HDPE material enables the liner to conform to the contours of the landfill site, ensuring a tight and secure fit. This adaptability contributes to its overall effectiveness in preventing leaks and maintaining the integrity of the landfill containment system.
Parameter
ltem | Detailed item | Unit | Standard | Test Frequency | GS075 | GS010 | GS015 | GS020 | GS030 |
Mechanical Properties | Thickness | mm | D5199 | per roll | 0.75 | 1.00 | 1.50 | 2.00 | 3.00 |
Density | g/cc | D1505/D792 | 90.000kg | 0.94 | |||||
Tensile Properties | |||||||||
Yield Strength | KN/m | D6693 Type Iv | 9.000 kg | 11 | 15 | 22 | 29 | 44 | |
Break Strength | KN/m | 20 | 27 | 40 | 53 | 80 | |||
Yield Elongation | % | 12 | 12 | 12 | 12 | 12 | |||
Break Elongation | % | 700 | 700 | 700 | 700 | 700 | |||
Tear Resistance | N | D1004 | 20.000kg | 93 | 125 | 187 | 249 | 374 | |
Puncture Resistance | N | D4883 | 20.000kg | 240 | 320 | 480 | 640 | 960 | |
Stress Crack Resistance | Hr. | D5397 | per GRl GM-10 | 300 hr. | |||||
Carbon black content | % | D4218 | 9.000kg | 2.0-3.0% | |||||
Carbon black dispersion | D5596 | 20.000kg | For 10 different views: 9 in Categories 1 or 2 and 1 in Category 3 | ||||||
Reference Properties | Oxidative Induction Time | ||||||||
Standard OlT | min | D3895 | 90.000kg | 100 min | |||||
High pressure OlT
| D5885 | 90.000kg | 400 min | ||||||
Oven Aging at 85°C retained after 90 days
| % | D5721 | per each formulation | 55% | |||||
Standard OlT | D3895 | 80% | |||||||
High pressure OlT | D5885 | 80% | |||||||
UV Resistance | |||||||||
High Pressure OlT_% retained after 1600 hrs | % | D5885 | per each formulation | 50% | |||||
Roll Size | Roll widthe | m | 7 | 7 | 7 | 7 | 7 | ||
Roll Length | m | 280 | 210 | 140 | 105 | 70 | |||
Size stability | % | 2% |
Geomembrane 2mm HDPE Landfill Impermeable Liner Features
HDPE geomembrane liners offer several advantages, including:
Excellent Chemical Resistance.
Outstanding Stress Crack Capacity.
Lowest Permeability.
Excellent UV Resistance.
Stable Low Temperature Embrittlement Resistance.
Proven Performance.
Fast Deployment.
Easy Transportation.
ISO9001 Certificated Geomembrane Factory.
Meet or Exceed All Aspects of GRI GM13.
Complete Width and Thickness Specifications.
Competitive Factory Price.
ODM/OEM are Available.
Applications of Geomembrane 2mm HDPE Landfill Impermeable Liner

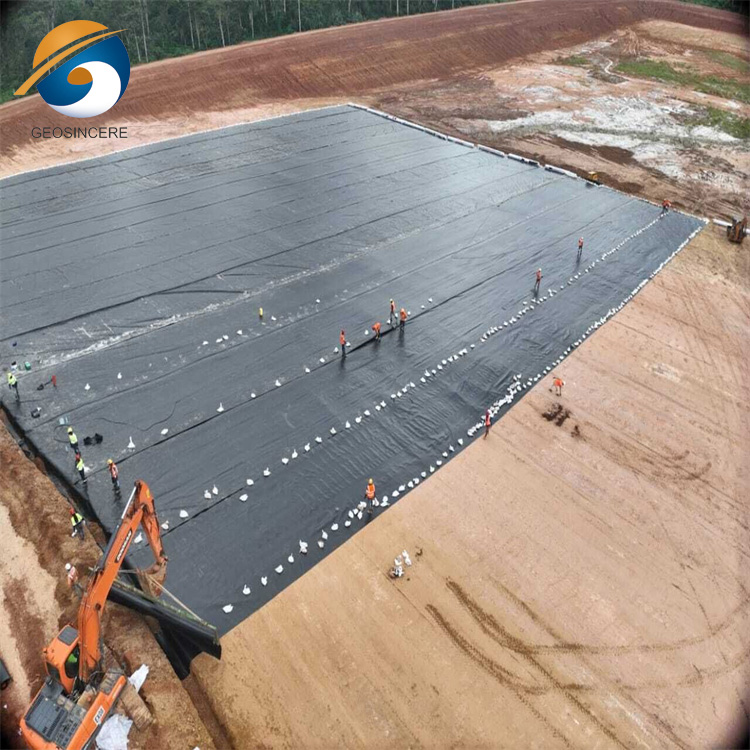

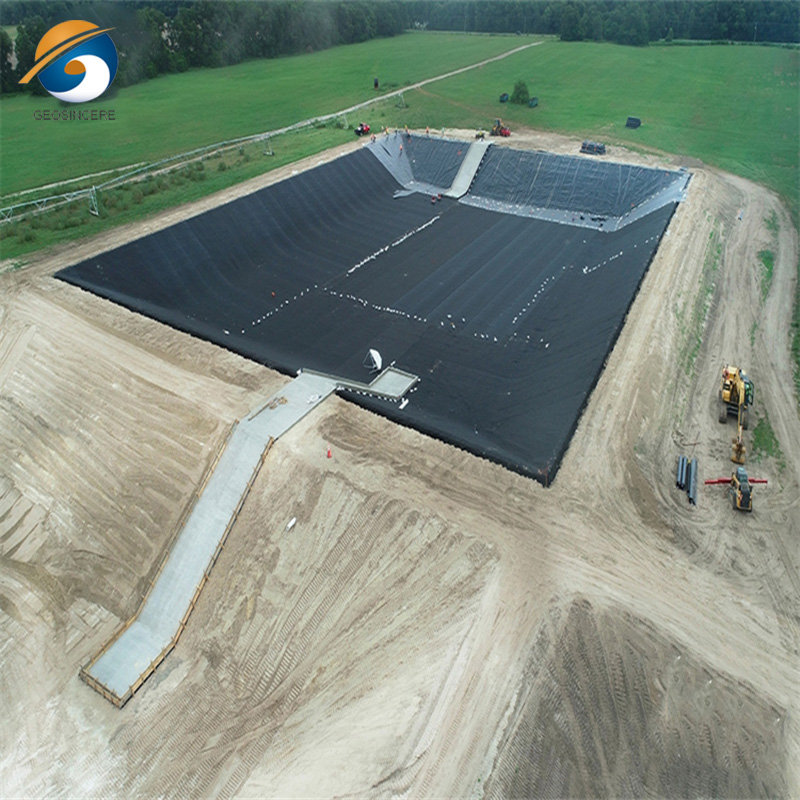

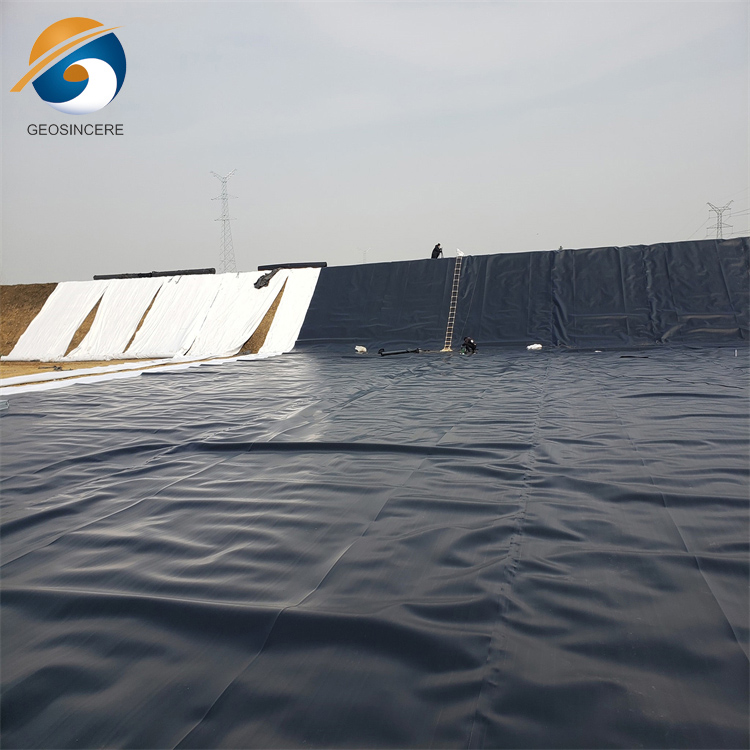

1. Landfills: The impermeable liner is used as a primary barrier to prevent the migration of contaminants from the landfill into the surrounding environment.
2. Waste Containment: It is employed in hazardous waste storage facilities, industrial waste ponds, and other containment structures.

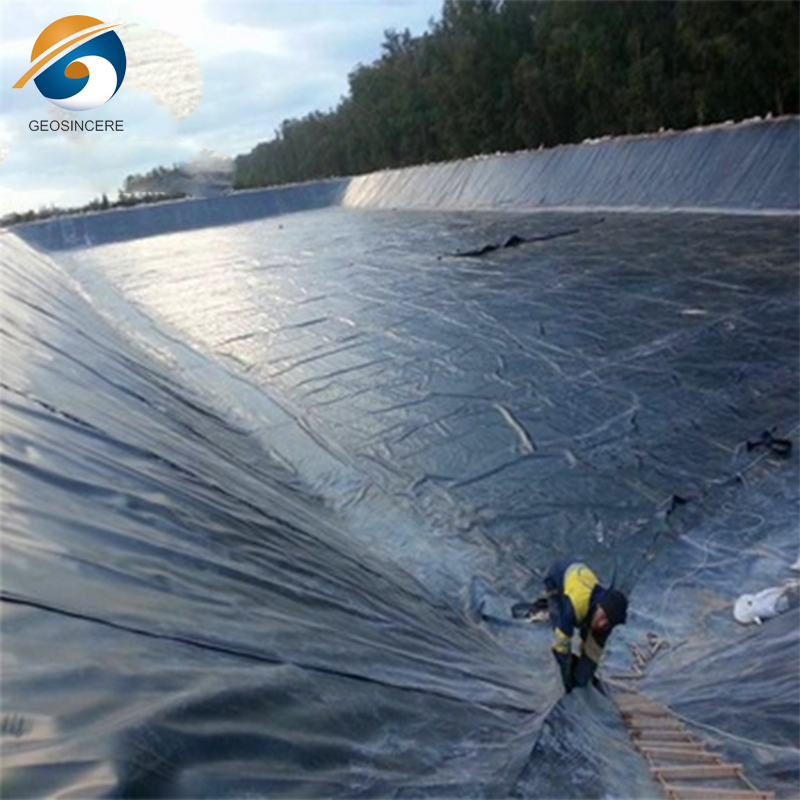

3. Water and Wastewater Treatment: The liner is suitable for lining ponds, lagoons, and tanks used in water and wastewater treatment facilities.
Product Packing
Selling Packing:Customer's company Logo mark can be designed and added.
Outer Packing:Packed in Double-layer woven bags to ensure smooth arrival and avoid rough handling.
Transport Packing: Put in the container.
