1.5mm Landfill HDPE Retention Pond Liner Geomembrane
HDPE geomembrane liners are commonly used in landfill retention ponds to provide a barrier between the waste materials and the surrounding soil and groundwater. These geomembrane liners help to prevent the leaching of contaminants from the landfill and protect the environment from potential pollution. HDPE geomembranes possess excellent chemical resistance, making them suitable for use in landfill environments where there can be a wide range of potentially corrosive or harmful substances present. They can resist degradation from chemicals, including acids, bases, and organic compounds found in landfill leachate.
Landfill retention ponds are designed to collect and contain leachate, which is the liquid that drains from the landfill. HDPE geomembrane liners act as a impermeable barrier, preventing the leachate from seeping into the ground and potentially contaminating the soil and groundwater.
HDPE (high-density polyethylene) pond liner geomembranes are commonly used in landfill retention applications to provide a reliable barrier system for containing and managing leachate.Landfills generate leachate, which is a liquid that results from the decomposition of waste materials. HDPE pond liner geomembranes are used to line the base and sides of landfill cells or retention ponds, preventing the leachate from infiltrating into the surrounding soil or groundwater.
HDPE geomembranes have excellent impermeability properties, serving as an effective barrier against the migration of liquids and gases. They have a low permeability coefficient, which ensures that leachate is contained within the landfill retention system, reducing the risk of environmental contamination.
HDPE pond liner geomembranes are known for their exceptional durability and resistance to punctures, tears, and UV degradation. They can withstand the mechanical stresses associated with landfill operations, as well as environmental factors such as temperature fluctuations and exposure to sunlight.
Parameter
ltem | Detailed item | Unit | Standard | Test Frequency | GS075 | GS010 | GS015 | GS020 | GS030 |
Mechanical Properties | Thickness | mm | D5199 | per roll | 0.75 | 1.00 | 1.50 | 2.00 | 3.00 |
Density | D1505/D792 | 90.000kg | 0.94 | ||||||
Tensile Properties | |||||||||
Yield Strength | KN/m | D6693 Type Iv | 9.000 kg | 11 | 15 | 22 | 29 | 44 | |
Break Strength | KN/m | 20 | 27 | 40 | 53 | 80 | |||
Yield Elongation | % | 12 | 12 | 12 | 12 | 12 | |||
Break Elongation | % | 700 | 700 | 700 | 700 | 700 | |||
Tear Resistance | N | D1004 | 20.000kg | 93 | 125 | 187 | 249 | 374 | |
Puncture Resistance | N | D4883 | 20.000kg | 240 | 320 | 480 | 640 | 960 | |
Stress Crack Resistance | Hr. | D5397 | per GRl GM-10 | 300 hr. | |||||
Carbon black content | % | D4218 | 9.000kg | 2.0-3.0% | |||||
Carbon black dispersion | D5596 | 20.000kg | For 10 different views: 9 in Categories 1 or 2 and 1 in Category 3 | ||||||
Reference Properties | Oxidative Induction Time | ||||||||
Standard OlT | min | D3895 | 90.000kg | 100 min | |||||
High pressure OlT
| D5885 | 90.000kg | 400 min | ||||||
Oven Aging at 85°C retained after 90 days
| % | D5721 | per each formulation | 55% | |||||
Standard OlT | D3895 | 80% | |||||||
High pressure OlT | D5885 | 80% | |||||||
UV Resistance | |||||||||
High Pressure OlT_% retained after 1600 hrs | % | D5885 | per each formulation | 50% | |||||
Roll Size | Roll widthe | m | 7 | 7 | 7 | 7 | 7 | ||
Roll Length | m | 280 | 210 | 140 | 105 | 70 | |||
Size stability | % | 2% |
1.5mm Landfill HDPE Retention Pond Liner Geomembrane Features
Excellent Chemical Resistance.
Outstanding Stress Crack Capacity.
Lowest Permeability.
Excellent UV Resistance.
Stable Low Temperature Embrittlement Resistance.
Proven Performance.
Fast Deployment.
Easy Transportation.
ISO9001 Certificated Geomembrane Factory.
Meet or Exceed All Aspects of GRI GM13.
Complete Width and Thickness Specifications.
Competitive Factory Price.
ODM/OEM are Available.

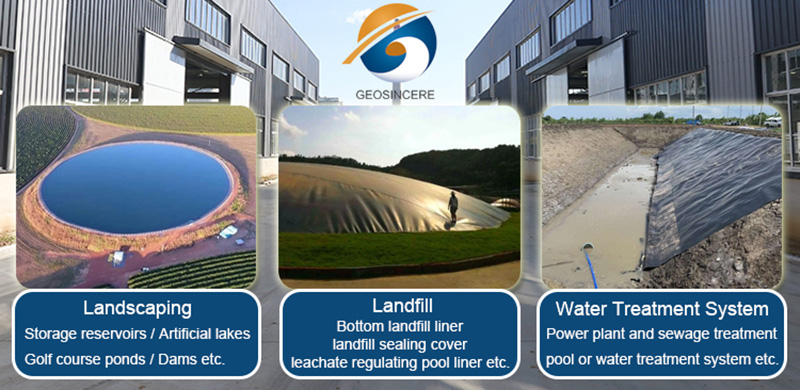

Applications of 1.5mm Landfill HDPE Retention Pond Liner Geomembrane

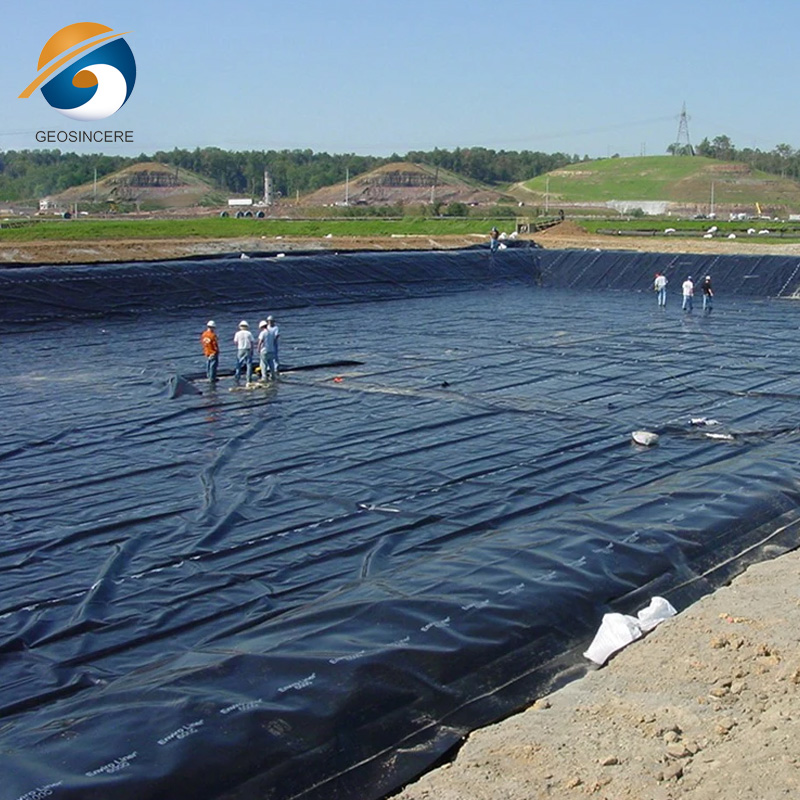

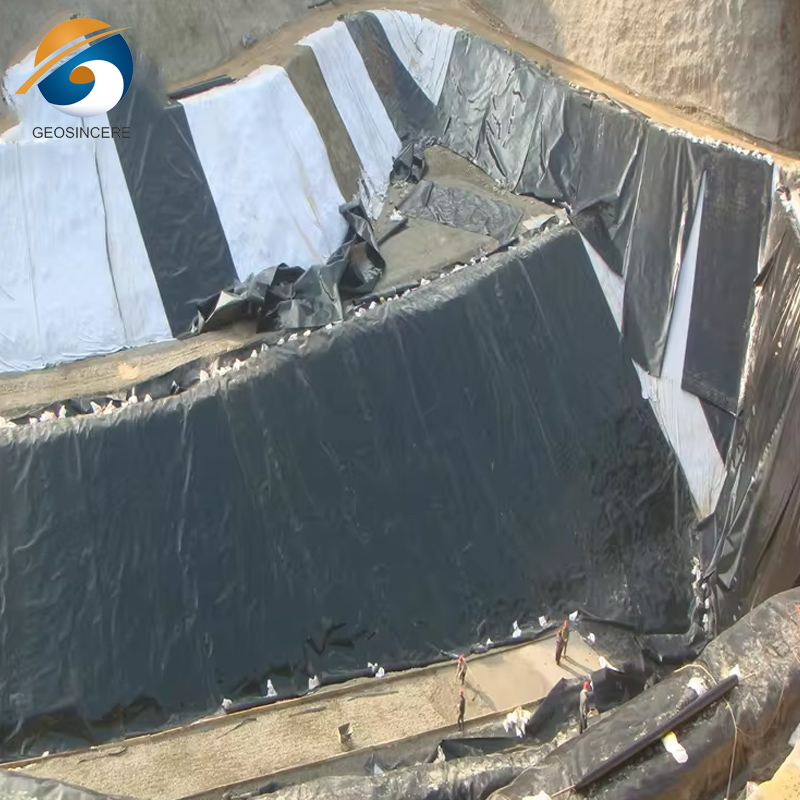

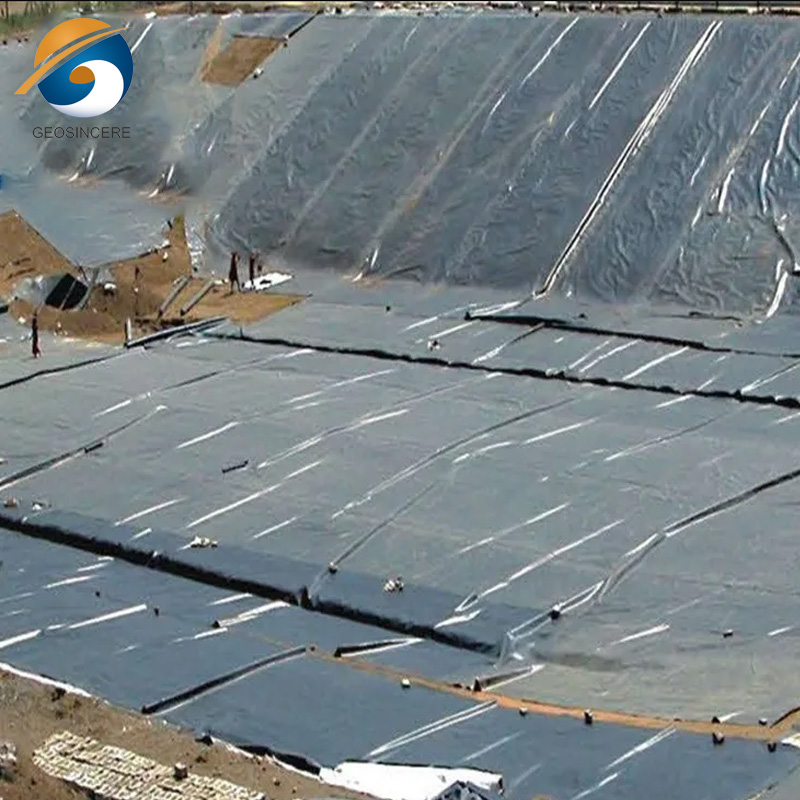

Landfill Retention Ponds: The primary application of a 1.5mm landfill HDPE retention pond liner geomembrane is in landfill containment systems. The geomembrane is used to line the bottom and sides of retention ponds, creating a barrier that prevents the migration of leachate into the surrounding soil and groundwater. It helps to contain and manage the liquid waste generated by the landfill, protecting the environment from potential contamination.
Waste Storage Ponds: In addition to landfill retention ponds, HDPE geomembranes can be used in waste storage ponds for industries such as mining, chemical processing, or industrial waste management. These ponds are designed to store and contain various types of liquid waste, and the 1.5mm HDPE geomembrane provides an impermeable barrier that prevents the waste from seeping into the ground.
Biogas Digesters: Biogas digesters are used to process organic waste, such as agricultural residues or wastewater, to produce biogas for energy generation. A 1.5mm landfill HDPE retention pond liner geomembrane can be used to line the digester to create an airtight environment. This prevents the escape of biogas and ensures efficient gas capture and utilization.
Mining and Containment Ponds: HDPE geomembranes are commonly used in mining operations to line containment ponds for storing and managing mine tailings or other process water. The 1.5mm thickness of the geomembrane provides added strength and durability, enabling it to withstand the abrasive nature of mining materials and the potential for punctures or tears.
Agriculture and Irrigation Ponds: Agricultural applications may involve using 1.5mm landfill HDPE retention pond liners in irrigation ponds or storage reservoirs. These liners help to prevent water seepage, ensuring efficient water storage and irrigation practices. They also protect against potential contamination of water sources from agricultural chemicals.
Aquaculture and Fish Farming: HDPE geomembranes can be used in aquaculture and fish farming operations. They are employed to line ponds or tanks, providing a waterproof barrier that prevents water seepage and maintains optimal water levels. The 1.5mm thickness offers enhanced puncture resistance for the containment of water and aquatic species.
Product Packing
Selling Packing:Customer's company Logo mark can be designed and added.
Outer Packing:Packed in Double-layer woven bags to ensure smooth arrival and avoid rough handling.
Transport Packing: Put in the container.
Company Profile
Shandong GEOSINO New Material Co.,Ltd (Brand:Geosincere) is the professional geomembrane and geosynthetics manufacturer and wholesaler located in Taian City, Shandong Province, PRChina. We are not a local overseas distributer, we are an professional manufacturer, exporter and wholesaler for such geosynthetic products as geomembanes, geotextiles, geogrids, geocells, geosynthetic clay liners (GCLs), drainage boards, etc. GEOSINCERE is always committed to geomembrane research and development, manufacturing and installation services. We can provide our customers with most extensive lines of geomembranes and geotextiles for civil, mining, environmental and aquaculture engineering applications.
GEOSINCERE has been keeping on investing in technological innovation, manufacturing facilities improvement and turnkey engineering abilities. We have invested 10 million dollars into our manufacturing factory which is equipped with state-of-the-art automatic production lines to manufacture high quality geomembranes and other geosynthetics with optimized processes. GEOSINCERE has over 160 employees and its own 24,000 square meters state-of-art manufacturing factory with many automatic geosynthetic production lines, professional machines and testing equipment.Our extensive lines of geosynthetics products are well known for their ensured quality, high performance, excellent durability and best cost effectiveness. GEOSINCERE brand geomembranes and other geosynthetics products and solutions can meet your requirements by our solid technologies, innovative engineering solutions and excellent customer services. GEOSINCERE always tries our best to solve the most complex civil, mining and environmental challenges with our innovative and high performance geosynthetic products. Quality assurance, factory price and fast delivery time are our competitive advantages.
Hope to be your partner!
